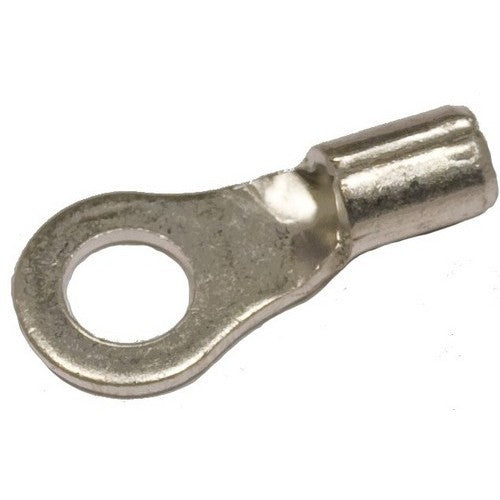

Morris 11068 100PK Stud 1/2" Non-Insulated Ring Terminals

Morris 11068 100PK Stud 1/2" Non-Insulated Ring Terminals

$43.67 USD
$43.67 USD
Sale Sold out

  • Non-Insulated Ring Terminals - Non-Insulated Wiring Terminals for Electrical Terminations.

  •  MODEL # -11068 100PK
  • DESCRIPTION - Non-Insulated Ring Terminals
  • FEATURES  -Non-Insulated Ring Terminal Material: High Strength Electro-Tin Plated Copper Brazed Seam Serrated Barrel with Brazed Seam provides Excellent Electrical Contact & resistance to pull-out forces Maximum Electrical Current: 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp, 8 AWG - 70 Amp, 6 AWG - 95 Amp, 4 AWG - 125 Amp, 2 AWG - 170 Amp 302°F(150°C) 600 Volts Max cULus Listed Dimension Measurements = Inches Order Qty of 100 = 1 Bag of 100
  • MATERIAL - Copper
  • FINISH - Electro-tin plated
  • STUD SIZE - 1/2"
  • WIRE SIZE - 12-10
  • UPC -  601986110686
