American lighting

American Lighting SWX-100-24 SWITCHEX

American Lighting SWX-100-24 SWITCHEX

Regular price $297.00 USD
Regular price Sale price $297.00 USD
Sale Sold out

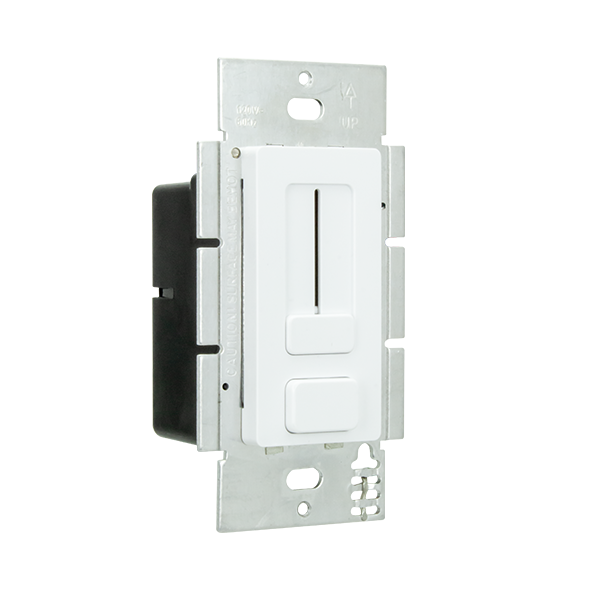

  • SWITCHEX simplifies LED array lighting systems by combining an in-wall LED dimmer switch and power supply into a single integrated unit. SWITCHEX mounts in a standard in-wall switch box, accepts 120V AC and converts to low voltage DC. SWITCHEX is compatible with most 12VDC and 24VDC tape light and fixtures.
  • MODEL # -SWX-100-24
  • DESCRIPTION - SWITCHEX mounts in a standard in-wall switch box
  • RECOMMENDED USES -
  • All-in-one LED Driver + In-Wall Dimmer Switch
  • Simplifies LED installation by eliminating compatibility issues
  • Fits in a standard recessed electrical box
  • 5-100% dimming range - No minimum load
  • Single Pole preset dimmer with on/off push switch
  • Adjustable voltage output dial to address voltage drop
  • Includes voltage barrier partition for line and low voltage installation
  • No derating required when ganging units
  • Power failure memory recalls settings prior to interruption

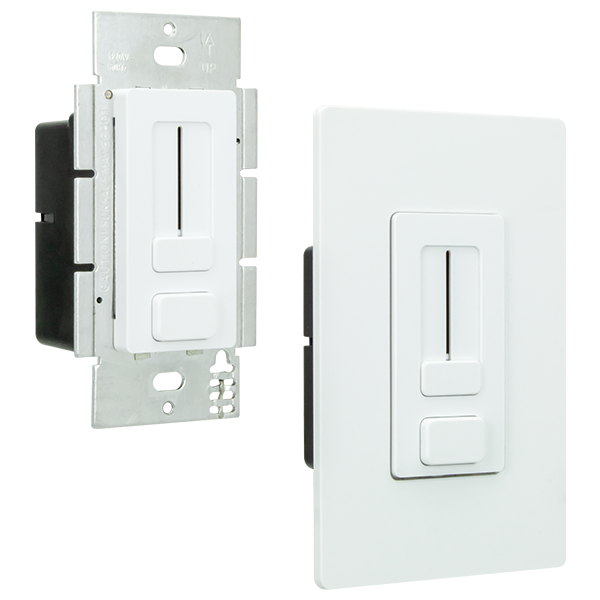

  • Includes three face plates: White, Almond, and Dark Brown
    (Trim plates not included)
  • BASE TYPE - N/A
  • BULB TYPE N/A
  • WATTAGE -  max load 60/100w
  • WATT EQUIVALENT - N/A
  • COLOR TEMPERATURE -  N/A
  • C.R.I.  - N/A
  • BULB LIFE (based on 3 hrs per day) - N/A
  • FEATURES - Dimmable
  • For indoor use
  • UPC - 714176024400
  • PACKAGE DIMENSIONS - 4.1 x2.1  x 1.5 inches
