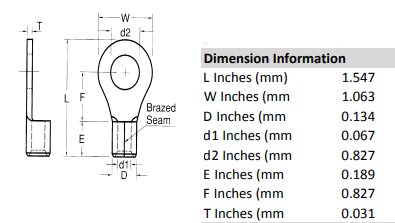

Morris Products 11032 Ring Terminal, Non Insulated, 22-16 Wire Size, 3/4" Stud Size

Morris Products 11032 Ring Terminal, Non Insulated, 22-16 Wire Size, 3/4" Stud Size

Regular price $57.99 USD
Regular price Sale price $57.99 USD
Sale Sold out
Count
  • Morris 11032 non-insulated wiring terminals are manufactured from high strength copper alloy and Electro-tin plated for corrosion resistance. Their serrated barrel and brazed seam prevents splitting under maximum pressure and is a excellent electrical contact & resistance to pull-out forces. For your convenience the wire range is stamped on the surface for easy interpretation.
  • MODEL # -11032
  • DESCRIPTION - Non-Insulated Ring Terminal
  • FEATURES High Strength Electro-Tin Plated Copper, Brazed Seam, Serrated Barrel, cULus Listed
  • MAX CURRENT - 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp, 8 AWG - 70 Amp, 6 AWG - 95 Amp, 4 AWG - 125 Amp, 2 AWG - 170 Amp
  • MAX TEMP302°F(150°C)
  • MAX VOLTAGE - 600
  • MATERIAL - Copper
  • FINISH - Electro-tin plated
  • UPC - 601986110327
